Software Engineering Online Test

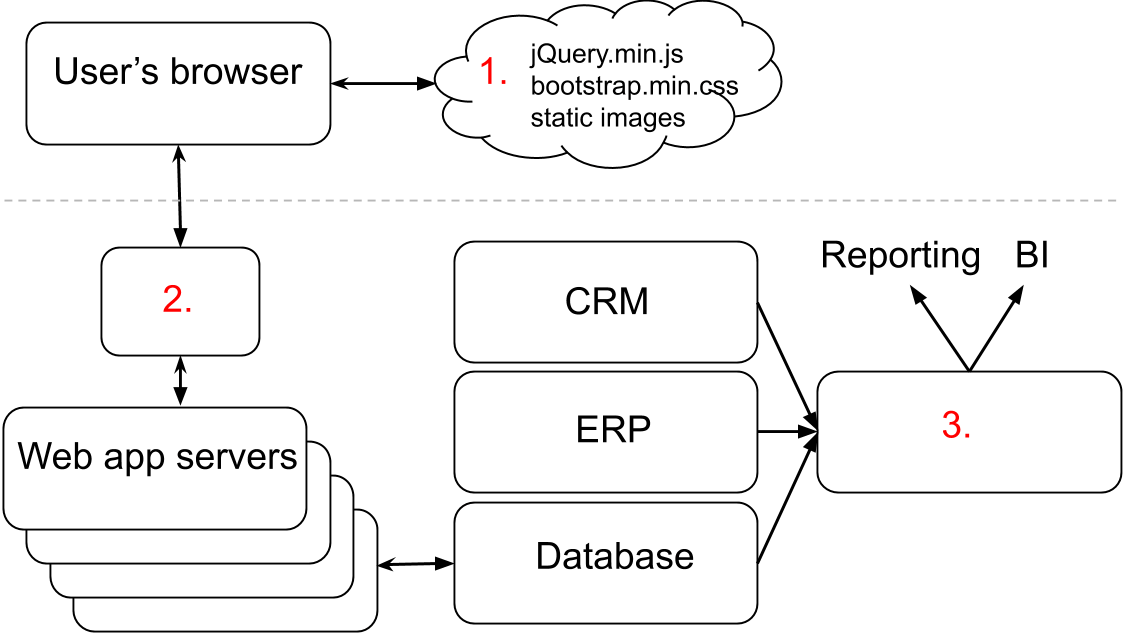

During a discussion about architecture for a new web app the following sketchup was made:

The authors of the sketchup forgot to write the descriptions for three components marked with red numbers.

Select the best choice, regarding the context, for the description that should define each component.

For the following pseudocode functions, choose the big O notation that accurately describes its worst-case complexity.

In a language that supports OOP paradigm, we have the following code that serializes the content of a shopping cart to JSON format:

class ShoppingCart
  private content : Dictionary<int, string>

  public function serialize() : string
    return new JsonSerializer().serialize(content.clone())
  end function
end class

class JsonSerializer
  public function serialize(value : Dictionary<int, string>) : string
    ' Code that serializes dictionary to JSON format and returns it as string
  end function
end class

A client now wants to have the possibility for allowing plugins to serialize the shopping cart content to their own formats (e.g., XML). Select lines of code that, together, would extend the code above to allow this extensibility.

(Select all acceptable answers.)
